• Auto Look Around at Startup: When the car's engine starts, the system will activate the car's monitor and surrounding cameras to check the surrounding field of view for 10 seconds, then turn off
• Auto Reverse: When you pull reverse (left/right steering not triggered), the system will activate the display and rear view camera until reverse gear returns, then switch to the front view camera for 10 seconds and then turn off
• Front View Mode: The system starts up in front view mode by default. The front view is controlled by a switch (included). Press and hold the control switch for 2 seconds, the on-board monitor and on-board front-view camera will always work if no other triggers are in service. You can then turn off the front view video by pressing the control switch again for 2 seconds

• Side View Mode: Press the control switch for less than 1 second to enter Side View Mode. When you turn on the steering switch, the system will activate the monitor and side-view camera (left/right view cameras are controlled by left/right steering lights). The display and camera will turn off 1.5 seconds after the turn is complete. Press the control switch again for less than 1 second to enter forward view mode

Usage:

• Video Output: Two video outputs, one for the car monitor and the other for the car DVR.
• Front-view camera power supply: provided by the control box system.
• Rearview camera power supply: Powered by the control box system, it can also be powered by the reversing lights.
• Left/Right View Camera Power: Provided by the control box system.
• Trigger priority:
• Right View > Left View > Rear View > Front View
• Switch function:
• Press for less than 1 second: Side View Mode / Front View Mode
• Press and hold for 2 seconds (in front mode): front view / off

Specification:

• Current: Maximum: 50mA
• Power supply: 9-30V (24V camera for 24V car)
• System signal: PAL/NTSC/SECAM

• Video output: 1.0VPP/75
• Camera:

• Image sensor: PC1099
• Optical Size: 1/3 inch
• Pixel pitch: 5.07.4um
• Effective Pixels: 720480
• Horizontal resolution: 580 TV lines
• Dynamic range: >72dB
• Signal-to-noise ratio: >48dB
• Viewing angle: 170 degrees
• Video angle: 1V@75Ω

Package included

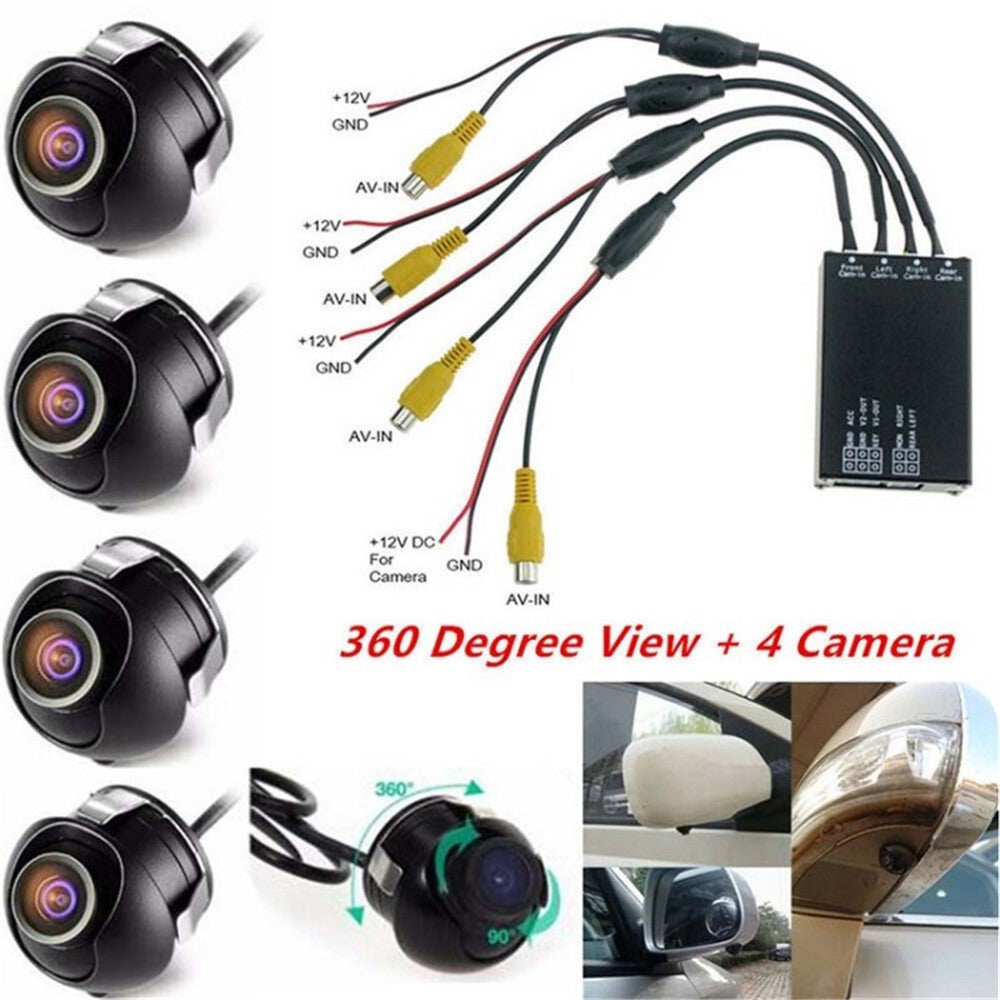

• 1 x Converter
• 4 x Cameras (Front, Rear, Left, Right)
• 4 x Camera Extension Cords
