• 【3MP HD Resolution & 135° Wide Angle】Equipped with GC2083 1/3-inch CMOS sensor delivering crystal-clear 1296P video quality with 135° diagonal viewing angle for comprehensive coverage.
• 【Intelligent Night Vision】Features 940nm invisible infrared LEDs with automatic light sensor switching, providing clear black and white night vision up to 3 meters without red glow exposure.
• 【PIR Human Detection & Smart Alerts】Advanced AI-powered PIR human body detection identifies abnormal movement and sends instant push notifications to your smartphone for enhanced security.

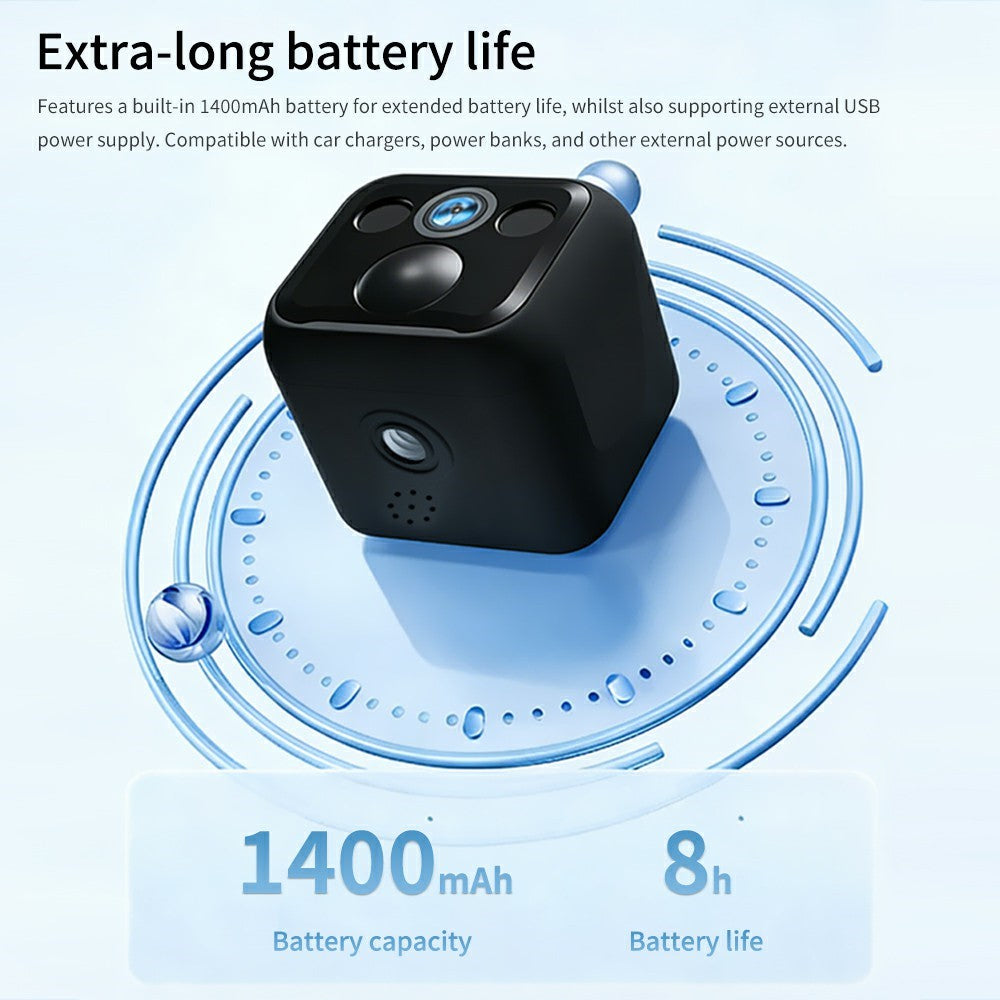

• 【Extended Battery Life】Built-in 1400mAh rechargeable battery provides up to 8 hours of continuous operation with Type-C charging support for 3-4 hours charging time.
• 【Multi-User Access & Dual Storage】Supports up to 4 simultaneous online viewers with both local TF card storage (up to 256GB) and cloud storage options for flexible data management.
• 【Wireless Connectivity Options】Multiple pairing methods including AP hotspot configuration, QR code setup, and Bluetooth-compatible connection for easy installation and setup.

Specifications:

• Model: B01
• CPU: T23 Processor
• Image Sensor: GC2083, 1/3-inch CMOS
• Resolution: 1296P/15fps (Main Stream), 360P/15fps (Sub Stream)
• Lens Focal Length: 10mm
• Viewing Angle: 135° Diagonal
• Night Vision: 940nm Infrared, 3-5m Range
• IR Light: 940nm Invisible Infrared LEDs
• WiFi Standard: IEEE 802.11 b/g/n
• Microphone: Built-in -38dB Microphone
• Cloud Storage: Supported (Paid Activation Required)
• TF Card Storage: Up to 256GB
• Power Supply: DC 5V ±5%, 1400mAh Battery
• Detection Function: PIR Human Detection, Motion Detection
• Motion Detection Alarms: Smart Push Notifications
• Working Temperature: -10°C to 55°C

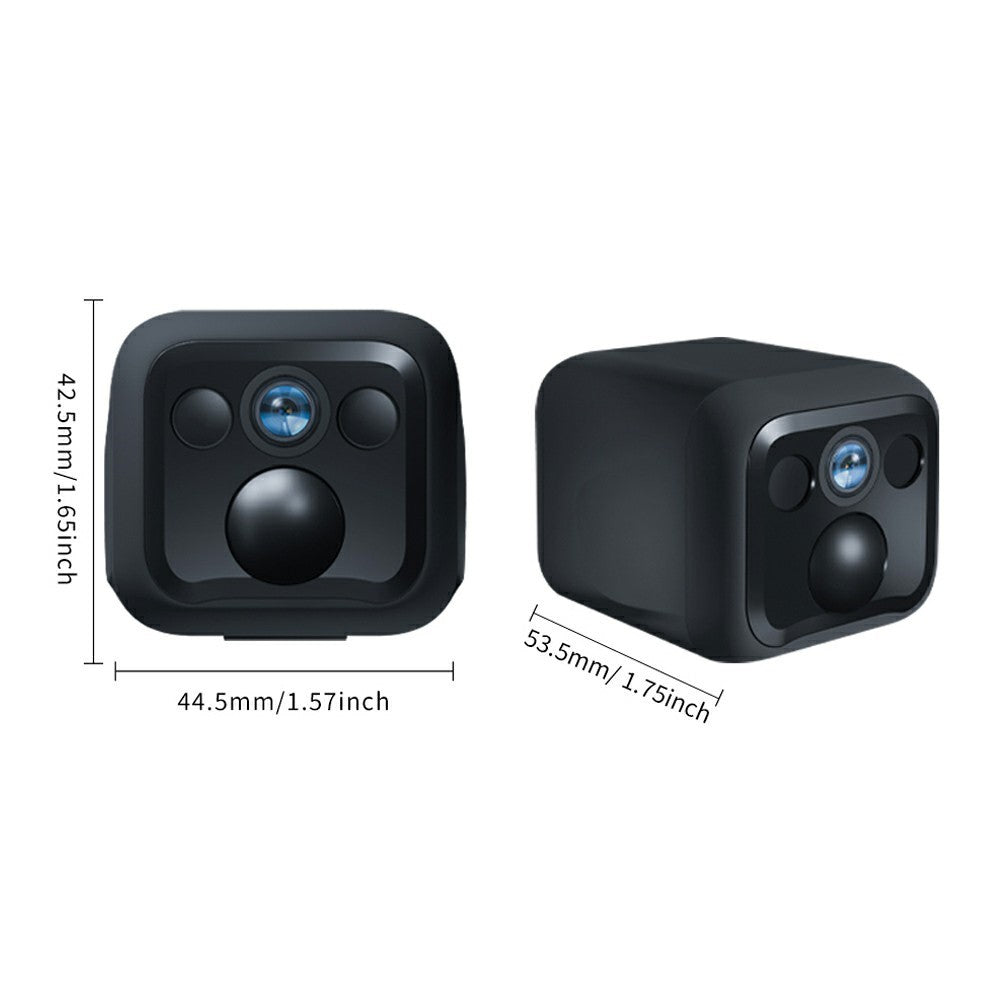

• Product Dimensions: 44.5mm × 53.5mm × 42.5mm
• Memory: 512MB
• Operating System: Linux
• Compression Standard: H.264 / MJPEG / JPEG
• Network Protocols: TCP/IP, HTTP, TCP, UDP, DHCP, DNS, NTP, RTSP, P2P, IPV4
• Wireless Frequency: 2.4 ~ 2.4835GHz
• Wireless Security: 64/128-bit WEP/WPA-PSK/WPA2-PSK
• Audio Sampling: 8KHz / 16bit
• Audio Compression: G711A
• Bitrate Control: CBR/VBR, 128~4096kbps
• Working Humidity: <90%

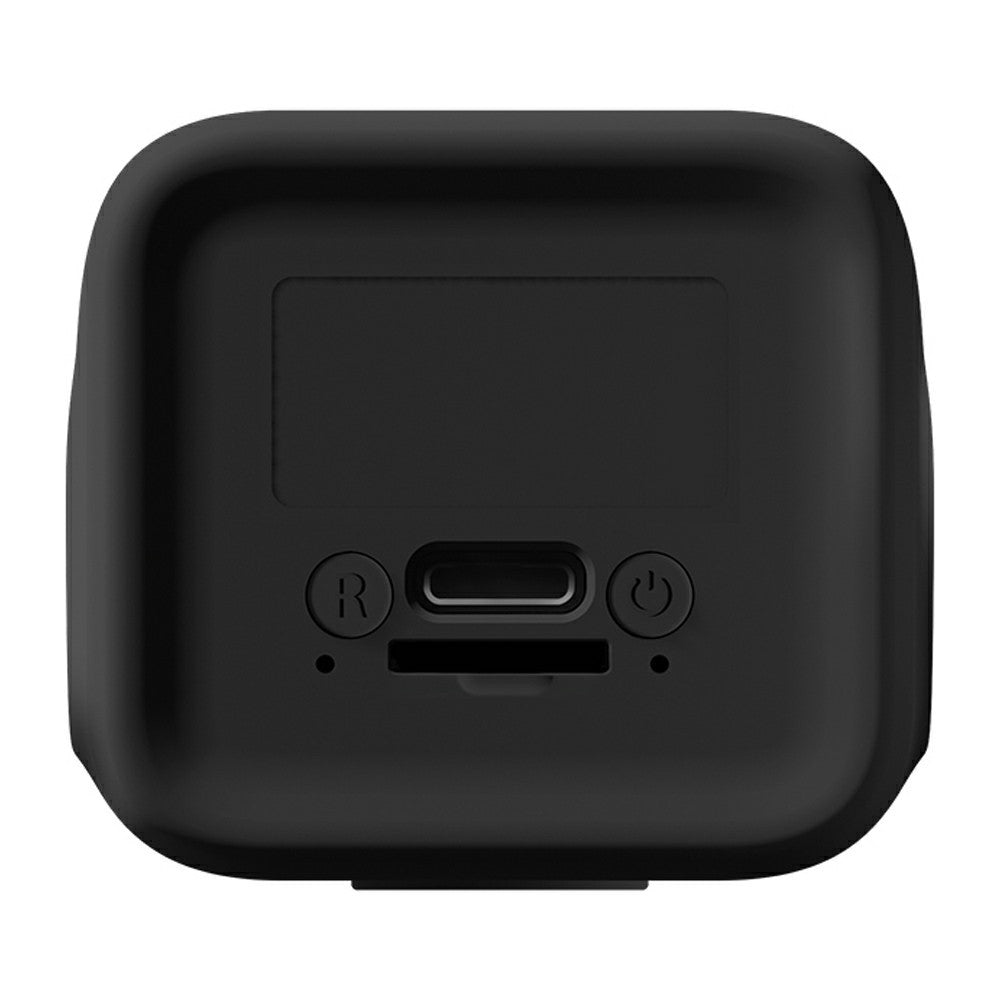

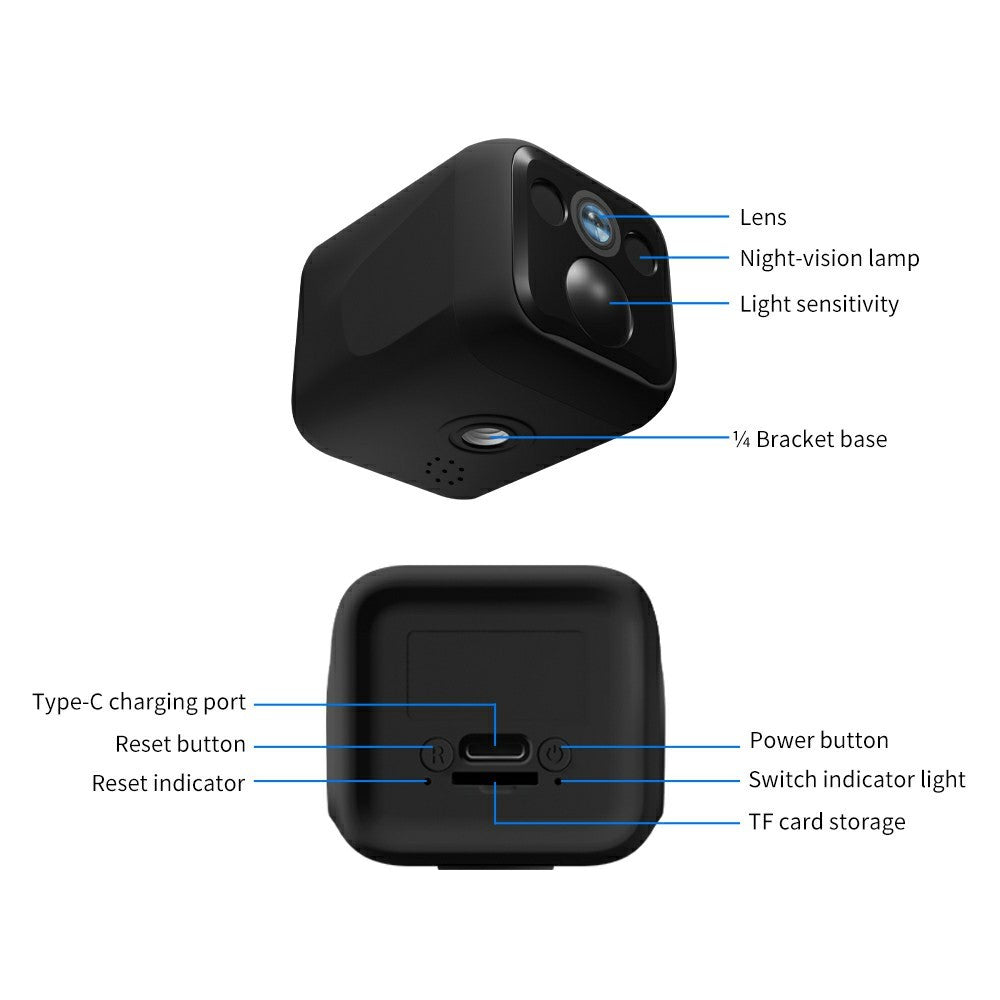

• Charging Interface: Type-C
• Standby Current: 5mA
• Working Current: 400~600mA

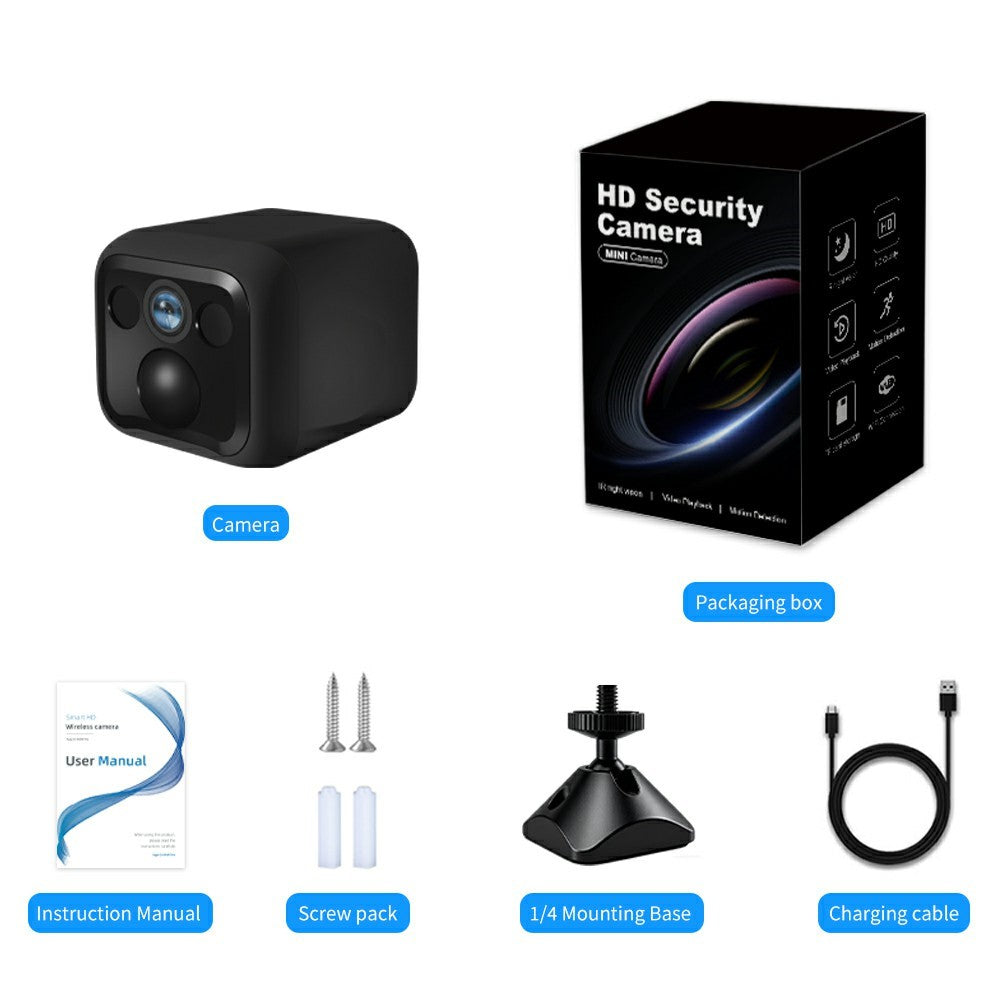

Package included

• 1 x Security Camera
• 1 x 1/4 Mounting Base
• 1 x Type-C Cable
• 1 x English User Manual
• 1 x Screw Pack
