• Using PBT flame retardant material, the fuse holder has good mechanical strength, insulation, heat resistance and flame retardancy
• All bus bars and fuse clips are nickel-plated copper for corrosion resistance and excellent electrical conductivity
• All fasteners are stainless steel and are fixed by tightening screws for faster installation, and the fuse box is fixed by self-tapping screws, which is easier and safer to install
• With double fuses, replace the spare fuse immediately, and the fuse has sent multiple amps, and the fuse of the amp can be selected according to the current electrical appliance

Specification:

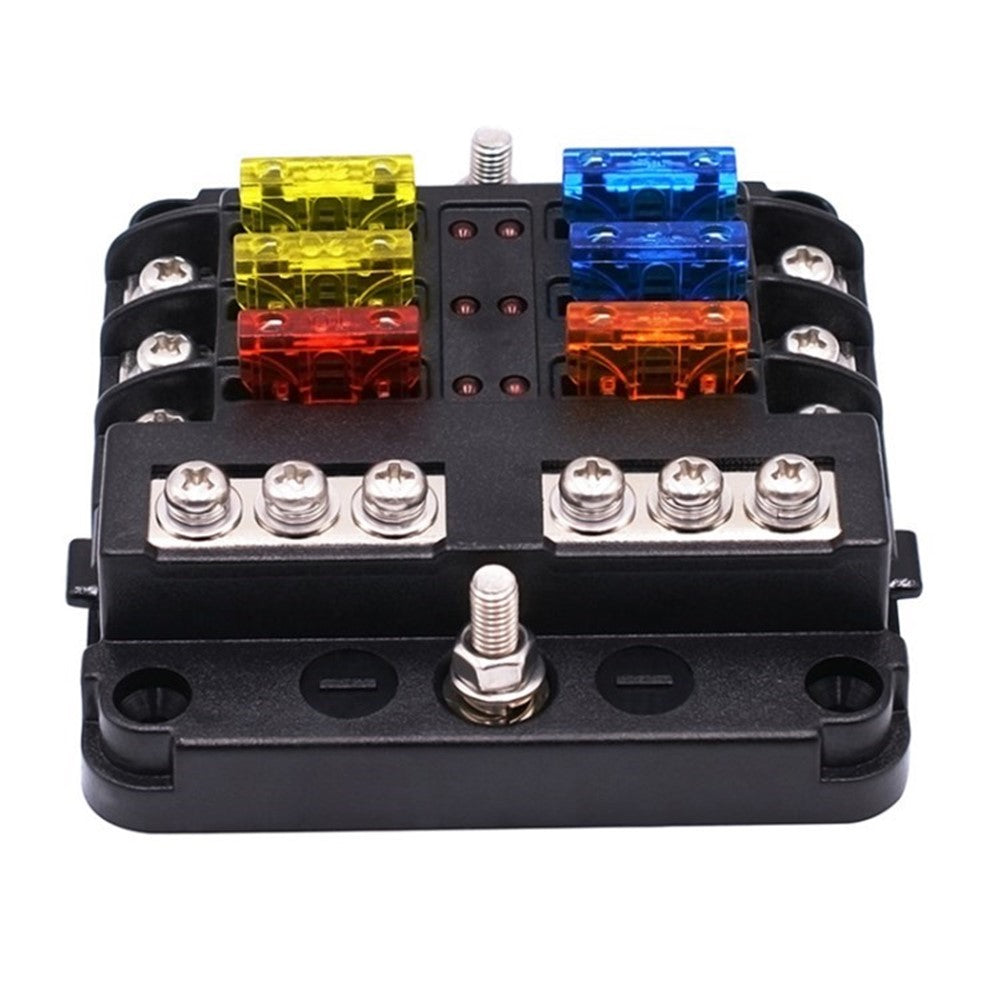

• Product: Fuse Box
• Model: CS-1469A1
• Type: 1 in 6 out
• Size: 87.75*85*36.5mm
• Material: PC, nickel-plated copper
• Input voltage: 32V
• Input current: 100A
• Max output current: 30A per circuit
• Main wire terminal: M5 threaded stud
• Mainline conductors: #4-6
• Single wire terminal: M4 threaded stud
• Single wire lead: #12-16
• Indicator light: red light- disconnected
• Installation range: installed in cars, villas, RVs, buses, yachts, boats, etc.

Package included

• 1 x Fuse Box
• 2 x Stickers
• 4 x Screws
• 4 x 20A Fuses
• 4 x 15A Fuses
• 2 x 10A Fuses
• 2 x 5A Fuses

Specifications
