• Uniform and fast heating: The uniform heating feature ensures that the rider's hands are evenly warmed without hot or cold spots. Hands can be warmed quickly, providing a comfortable riding experience
• Anti-slip design: Anti-slip material ensures that the rider can still hold the handlebar firmly in wet or rainy weather, which improves the safety and stability of riding
• Intelligent temperature control: Intelligent temperature control function automatically adjusts the heating level according to the rider's needs to maintain a comfortable temperature
• Multi-speed Heating Settings: Provides five different heating settings to meet the needs of different weather and riding conditions
• Product power and temperature control data: first gear (red): 32W; second gear (orange): 24W; third gear (yellow): 16W; fourth gear (green): 12W; fifth gear (blue): 11W

Specifications:

• Model No.: CS-1819A1
• Product Weight: 160g
• Input Voltage: DC12V

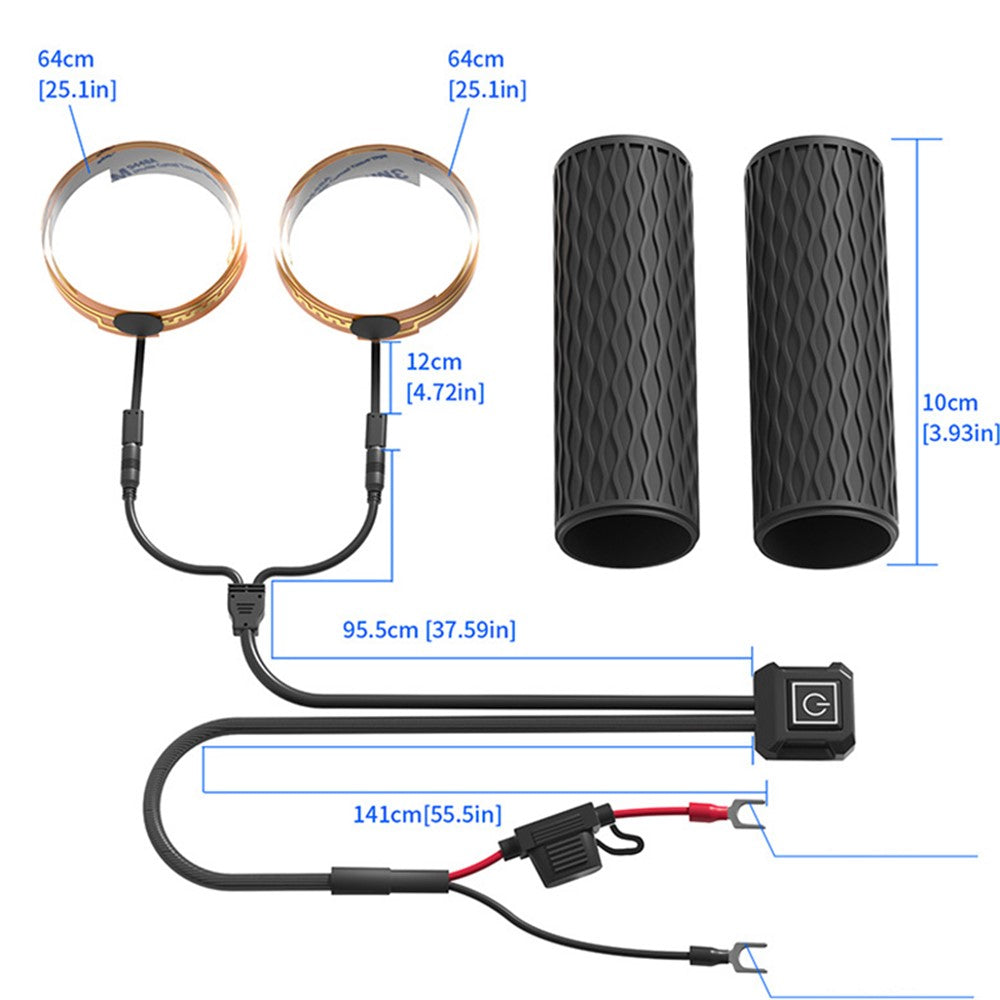

• Heating pad size: 64cm long
• Product line length: 110cm (heating pad to switch) 140cm (switch to electric door lock)
• Operating temperature: -30℃-+100℃

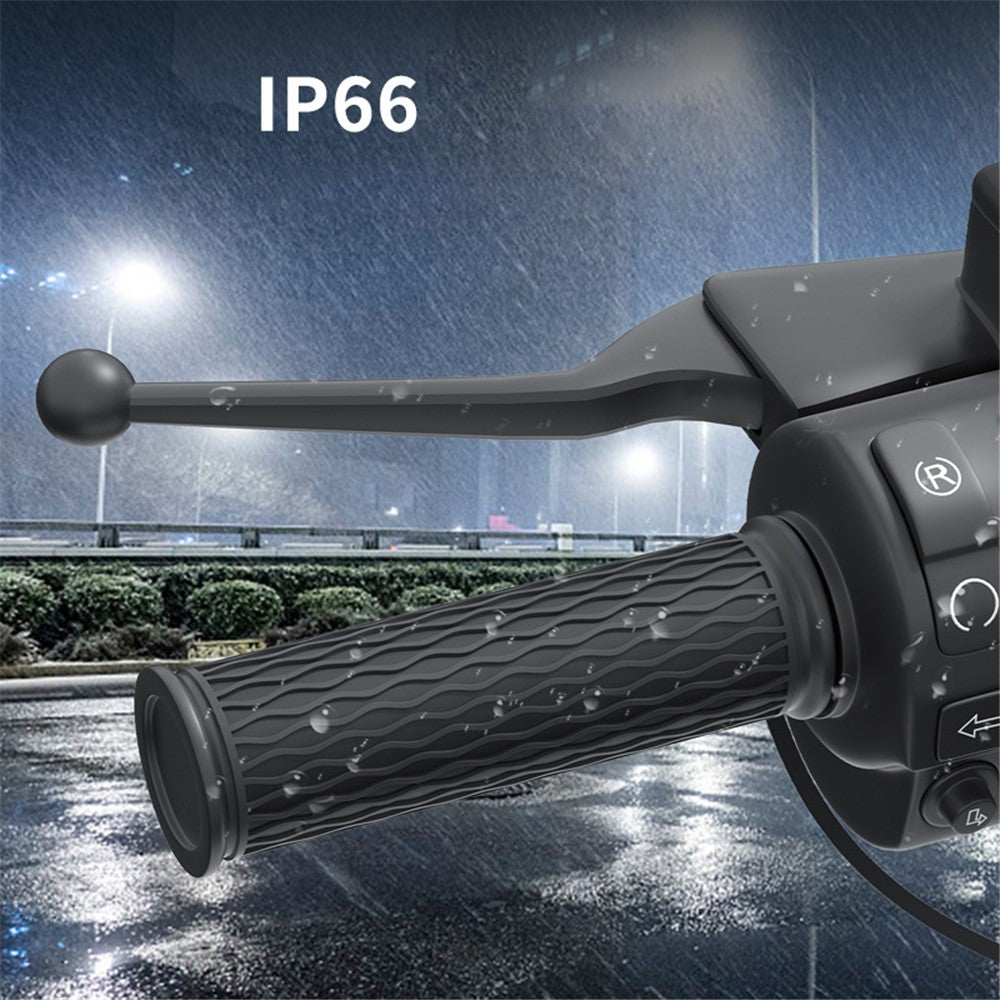

• Waterproof rating: IP66
• Fuse: 3A
• Material: Heat Sleeve: Silicone; Heat Sink: Stainless Steel 430; Film: PI

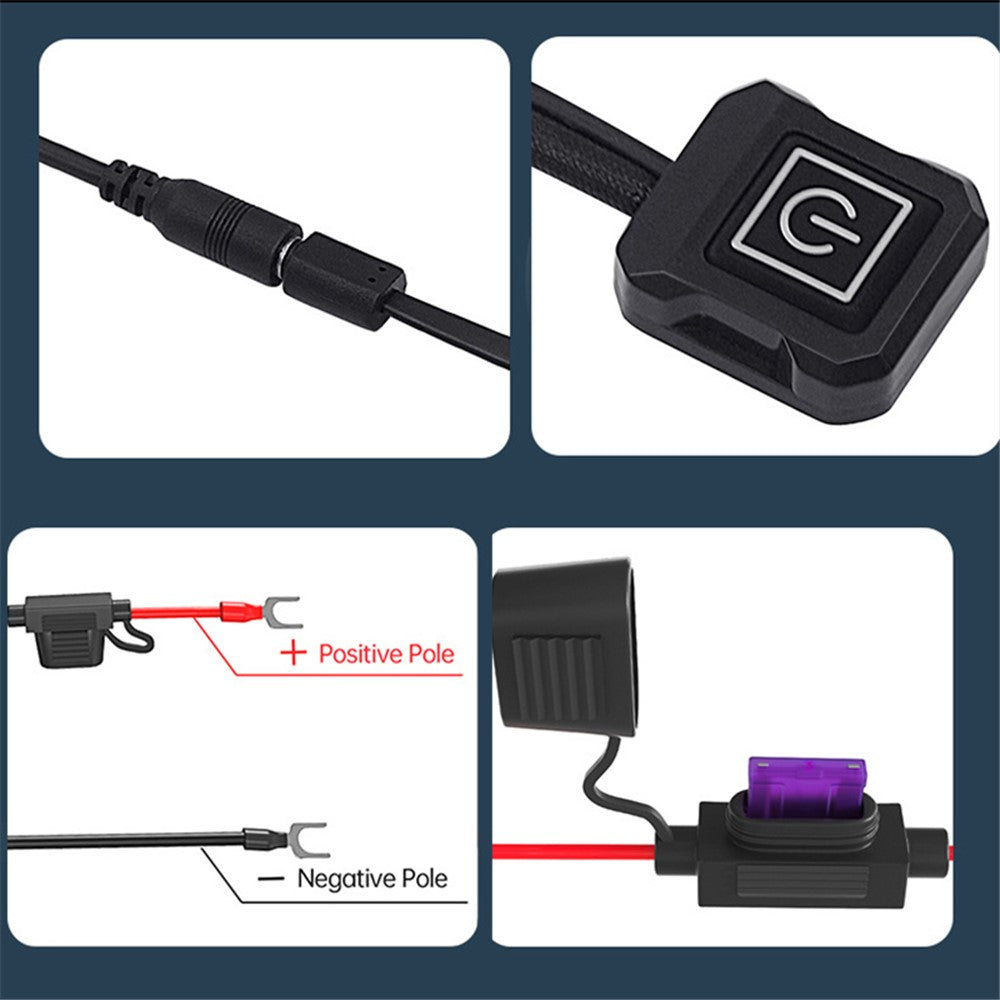

• Wiring method: red wire to the positive pole of the battery, black wire to the negative pole of the battery

Installation Method:

• Install the heating pad
• Electrician tape reinforcement
• Apply lubricant (not included)
• Put on the silicone sleeve (details refer to the instructions)

Instructions for Use:

• Click the on/off key: it is to switch gears and power on.
• Power on that is to boot, boot to memory gear work (i.e., the gear before shutdown), boot does not change gear.
• Memorize the current gear when working in any gear, and it can also be memorized when power is lost, press 3 seconds to turn off the power.
• 4LEDs indicate the color of different gears: red, orange, yellow, green, and blue.

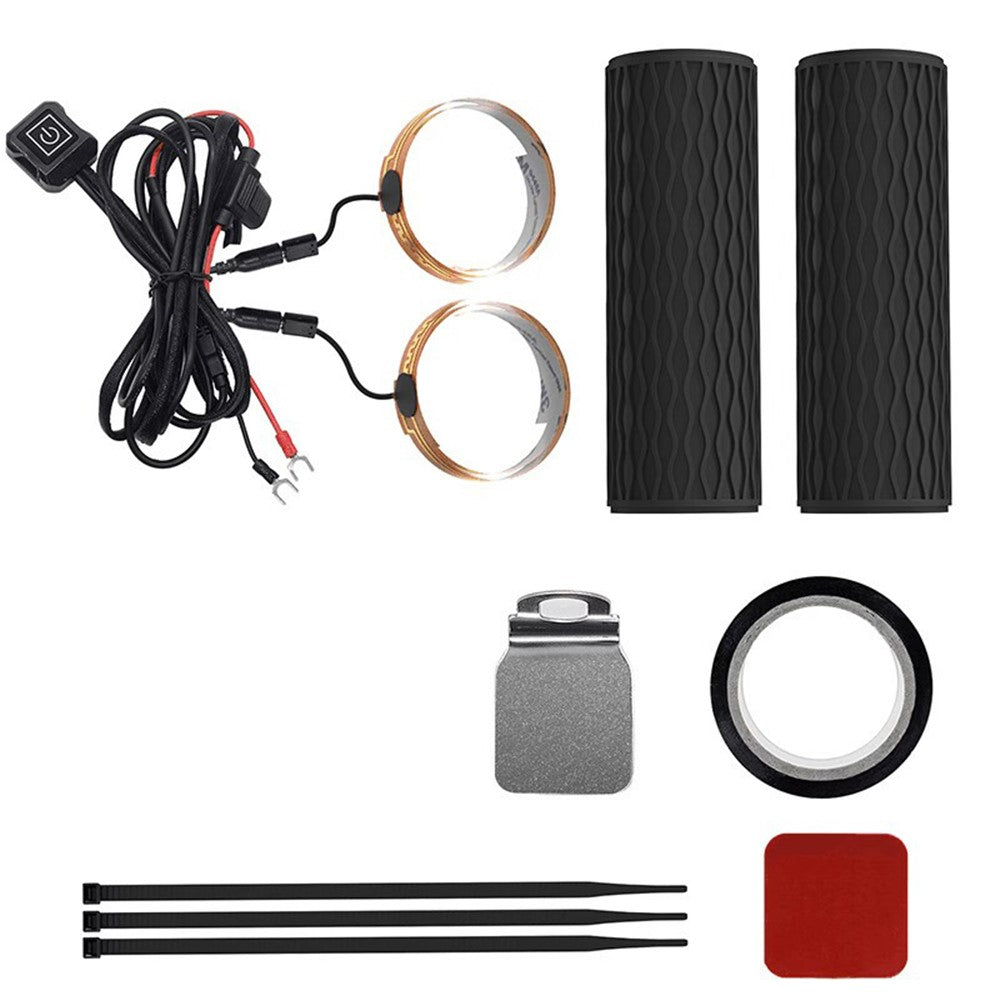

Package included

• 2 x Heating Grip
• 1 x Electrical Adhesive
• 3 x Tie Strap
• 1 x Stainless Steel L Bracket
• 1 x Double Sided Adhesive
• 1 x English and Chinese Manual
