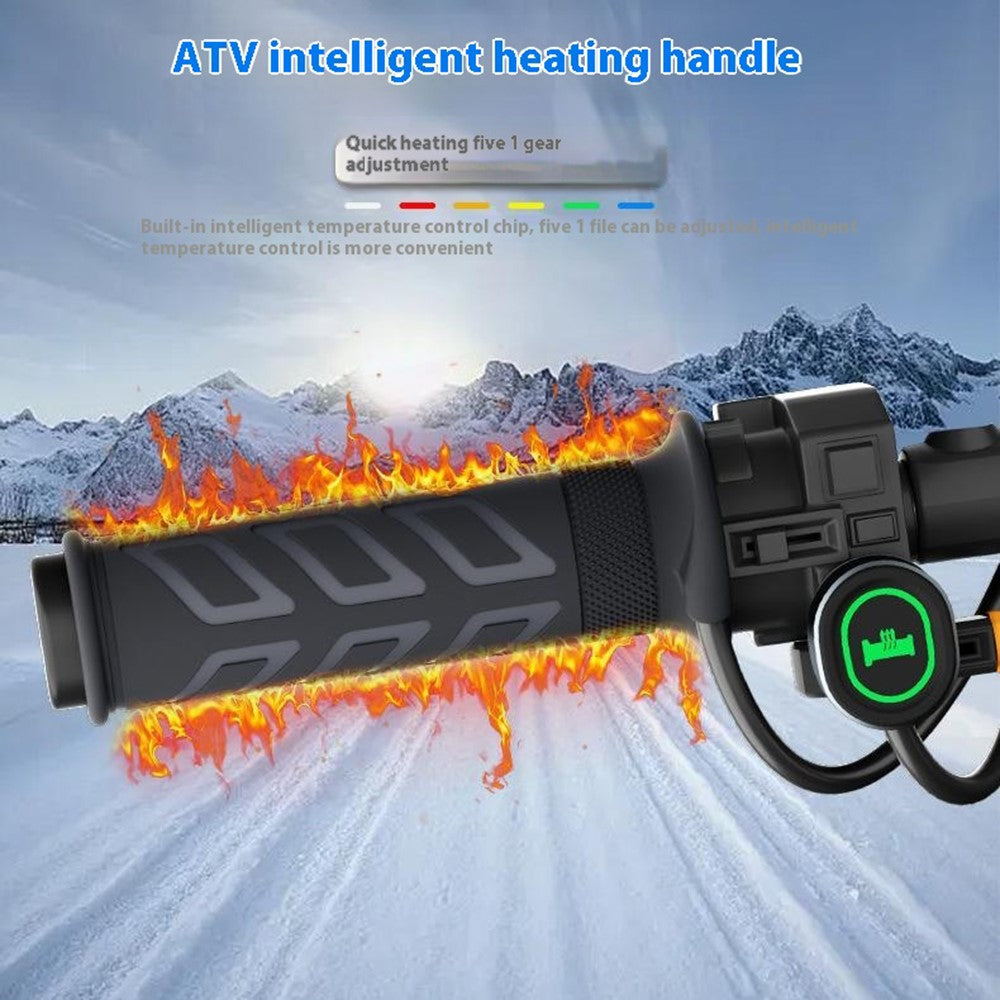

• Intelligent temperature control chip: The switch features a built-in intelligent temperature control chip with five adjustable heat settings, plus one additional setting for quick adjustment based on personal preferences, making temperature control more convenient

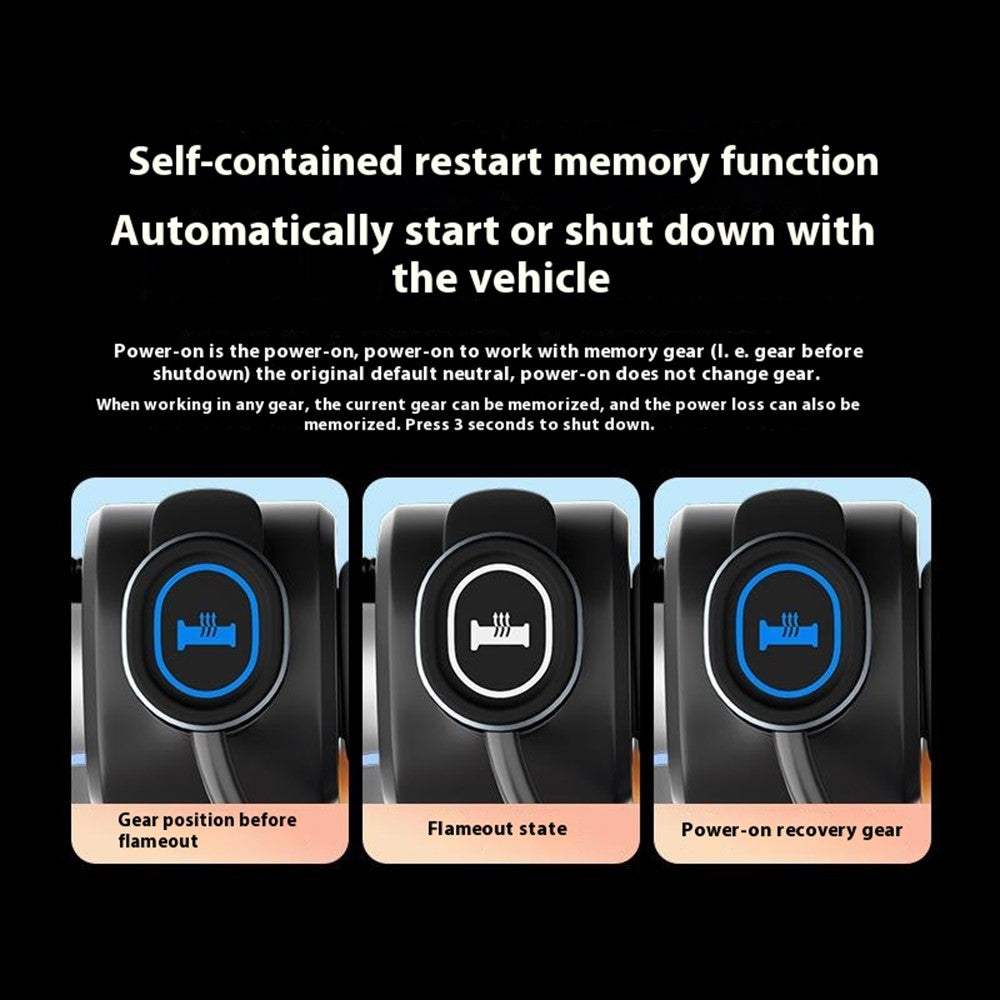

• Memory function for convenience: The product includes a memory function, allowing it to automatically return to the last set optimal temperature every time it is turned on, offering a more personalized and convenient experience

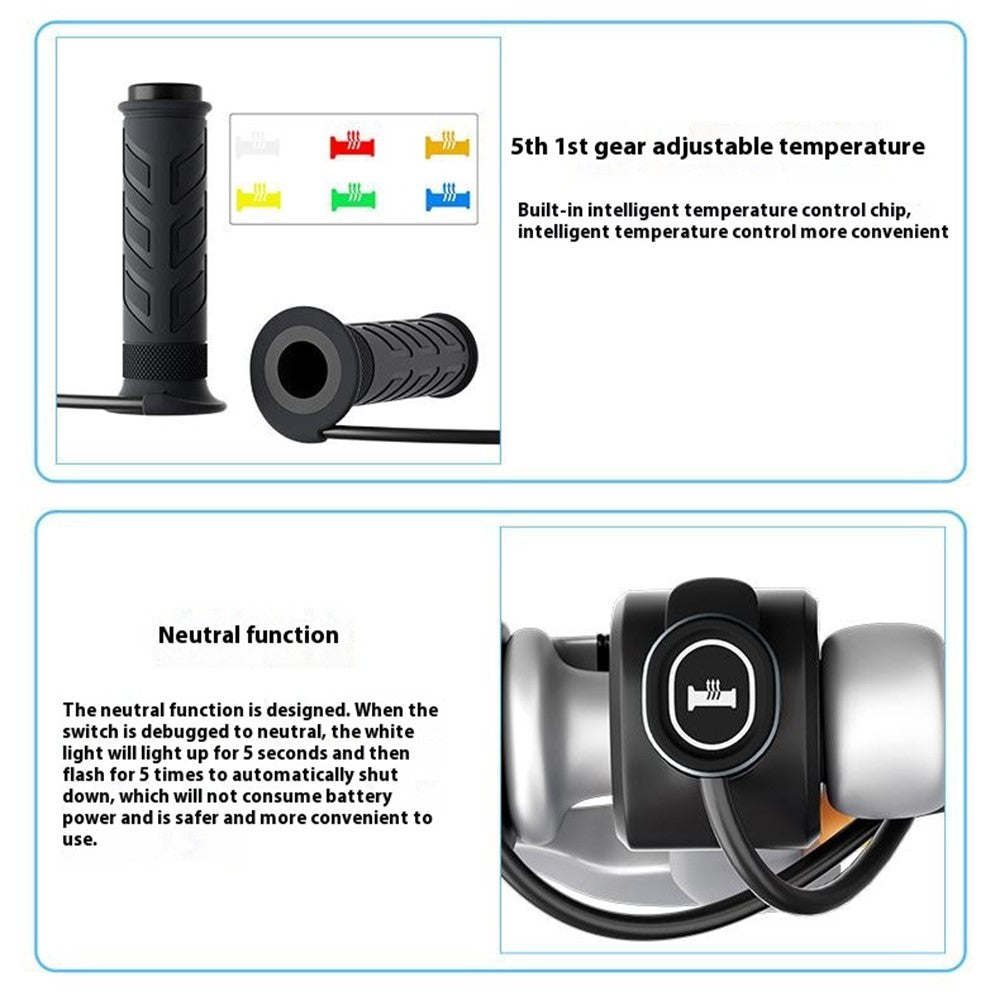

• Safe idle mode: The product has a specially designed idle mode. When the switch is turned to this position, a white light will turn on for 5 seconds, then flash 5 times before automatically shutting off, preventing unnecessary battery power consumption for enhanced safety and convenience

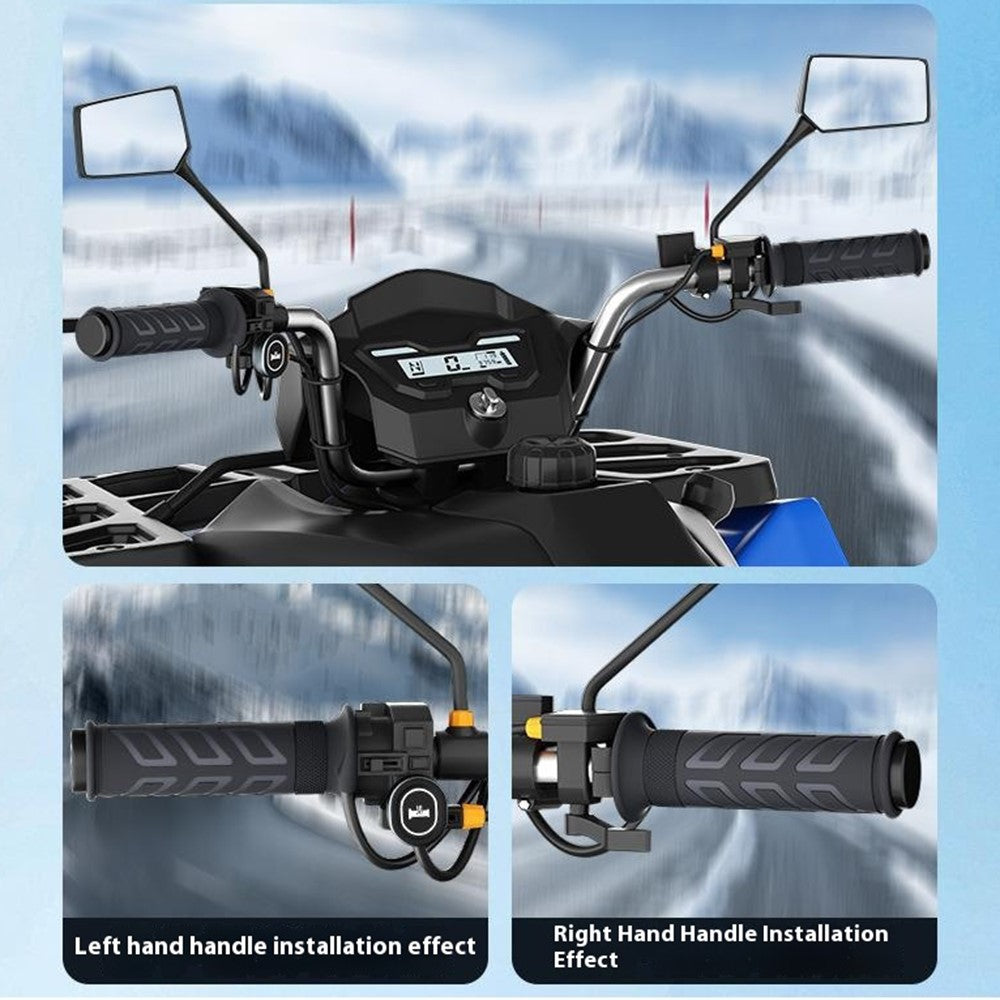

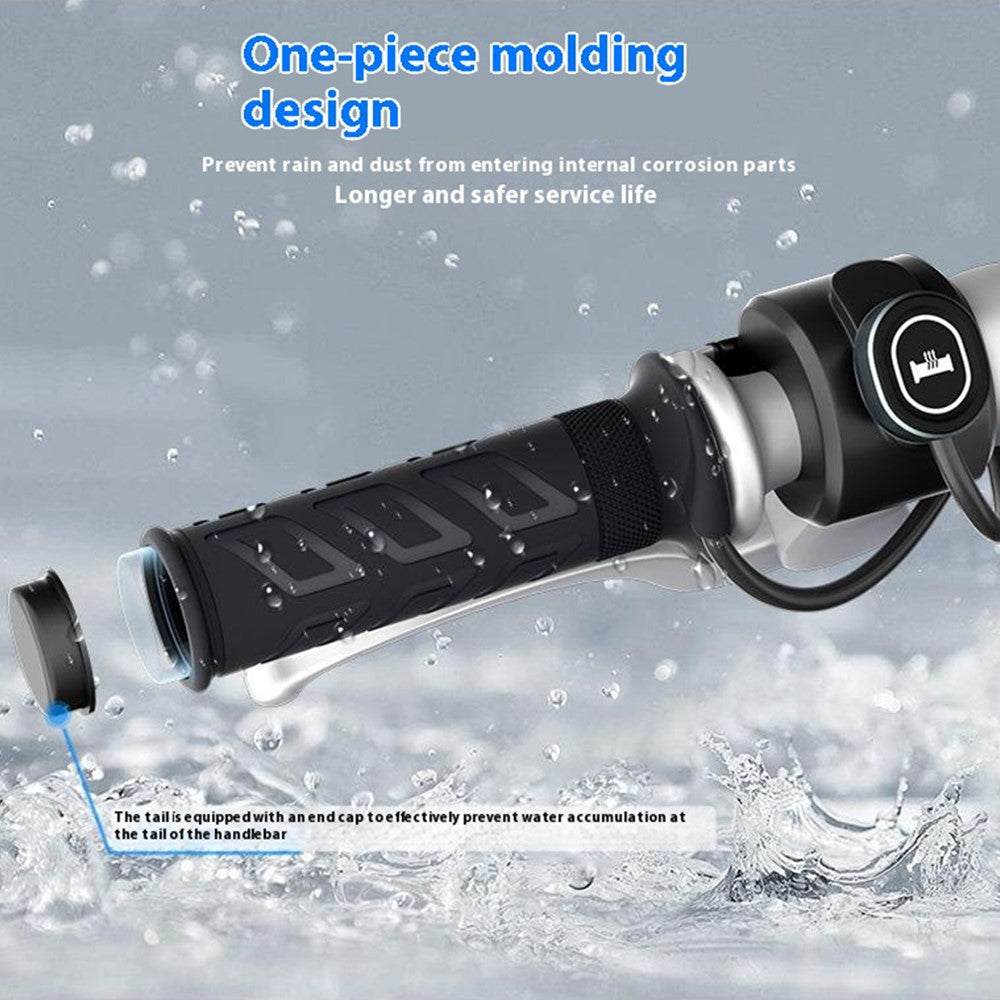

• One-piece design for durability: The one-piece molded design prevents rainwater and dust from entering and corroding internal components, extending its lifespan. The dual throttle cable clamp expands installation options for wider applications
• Compact and sensitive switch: The switch has been comprehensively upgraded for a smaller, more lightweight form factor. Its touch sensitivity has been improved, making operation faster and more responsive, with a modern and sleek appearance

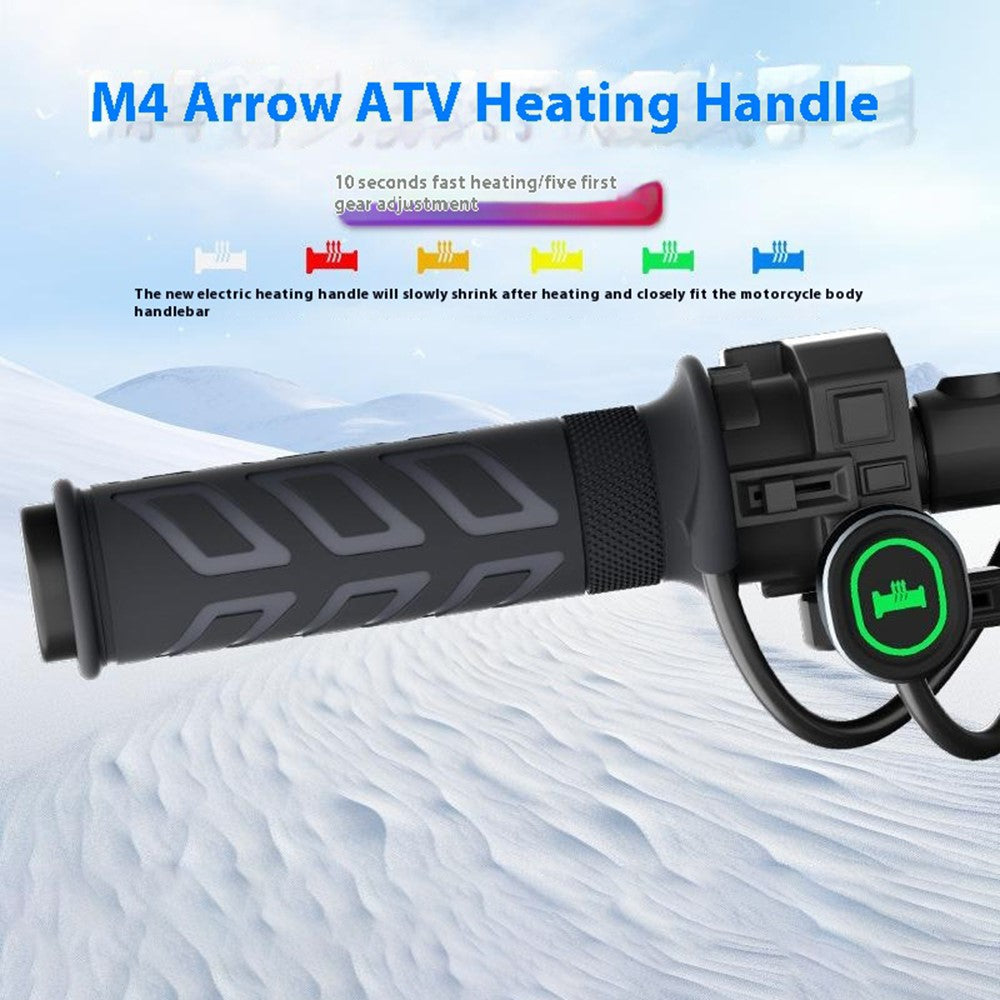

• Enhanced heating efficiency: The heating efficiency of the heated handle has been further upgraded. Under the same power and external conditions, its heating speed and final temperature outperform similar products

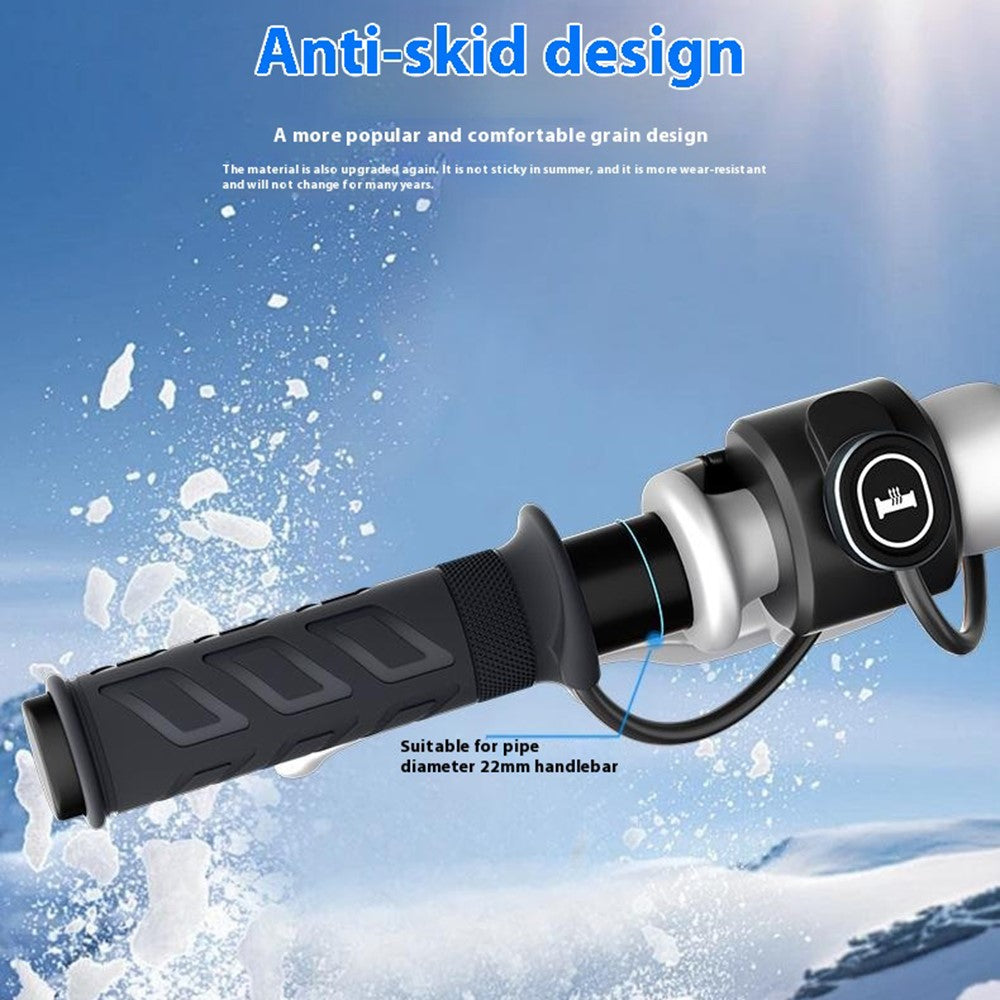

• Improved grip design: The product features a more popular and comfortable texture design, with upgraded materials that prevent stickiness in summer and resist wear and tear over years of use. Once heated and installed, the handle grips gradually tighten and seamlessly integrate with the vehicle body

Specification:

• Model: CS-1956E1 (Oval Metal Switch)
• Net Weight: 261g
• Material: Nitrile Rubber
• Voltage: DC12V

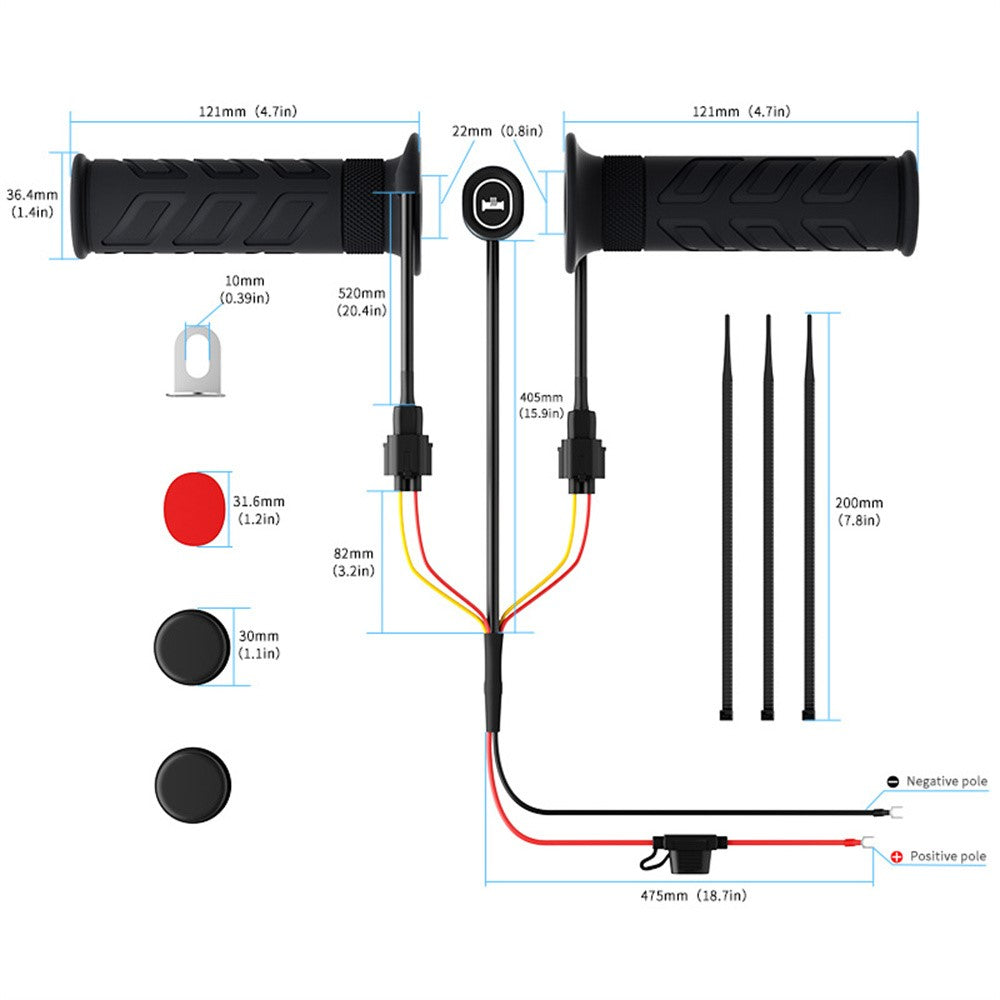

• Length: Left Handle: 121mm; Right Handle: 121mm (without handlebar end caps)

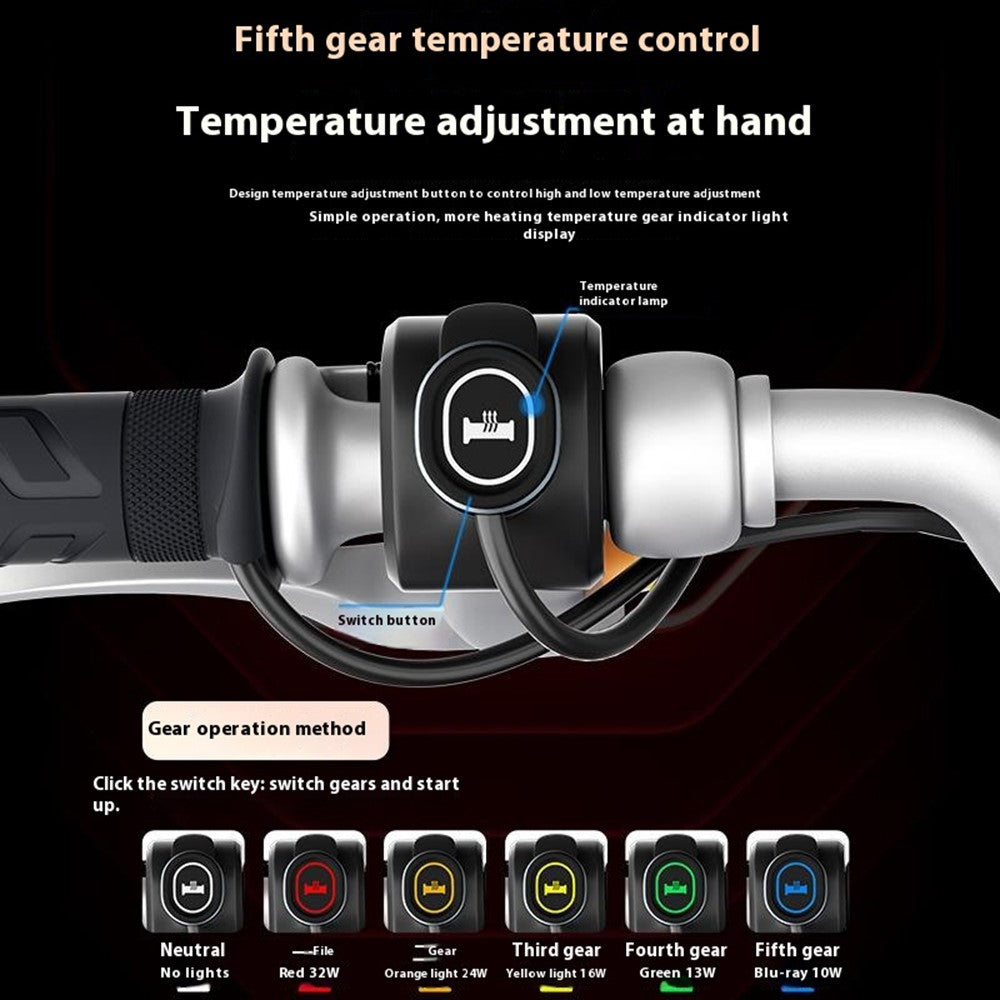

• Power: Level 1 [Red Light]: 32W, Level 2 [Orange Light]: 24W, Level 3 [Yellow Light]: 16W, Level 4 [Green Light]: 13W, Level 5 [Blue Light]: 10W, Idle [White Light]: 0W (These power figures are based on a 12V voltage)
• Operating Temperature: -20°C to +50°C
• Handle Type: Sealed or Open Electric Heated Handlebar
• Suitable Diameter: 22mm
• Switch Type: Plastic Multi-Level Adjustable Temperature Control Switch with Memory Function
• Switch Mounting Method: Rearview Mirror Mount, Adhesive Mount
• Protection Voltage: When the input voltage is ≥16V, the system can power on, but the white light will flash rapidly 3 times and then power off

Usage Instructions:

• Press the power button to switch between modes and turn on the device.
• The device turns on automatically when powered, and starts working at the last remembered mode (i.e., the mode before shutdown). The default is neutral, and the mode does not change upon startup.
• The current mode is memorized while in operation, even after power loss. Press and hold for 3 seconds to power off.
• LED indicates different modes with the following colors: 100% Red, 75% Orange, 50% Yellow, 40% Green, 30% Blue, Neutral: White.
• Includes surge protection and reverse polarity protection.

Note:

• Reversing the polarity of the product may cause damage. If the polarity is reversed for less than 5 seconds, circuit protection can prevent damage. Please ensure the correct polarity before connecting.
• Before installing the product, please check its operation. If there is excessive power consumption, an aging battery, or too many electrical devices causing insufficient power supply from the alternator, this product may not function properly.
• Prolonged use may cause low-temperature burns. Do not use for extended periods. At maximum output, the temperature will be very high.
• We shall not be held liable for any damage caused to the customer by this product under any circumstances. Thank you for your understanding.
• Using the handlebar when the engine is off may result in battery depletion. Ensure that the heated handlebar is used only when the engine is running.
• If you notice any abnormalities, please stop using the product immediately and contact us promptly.

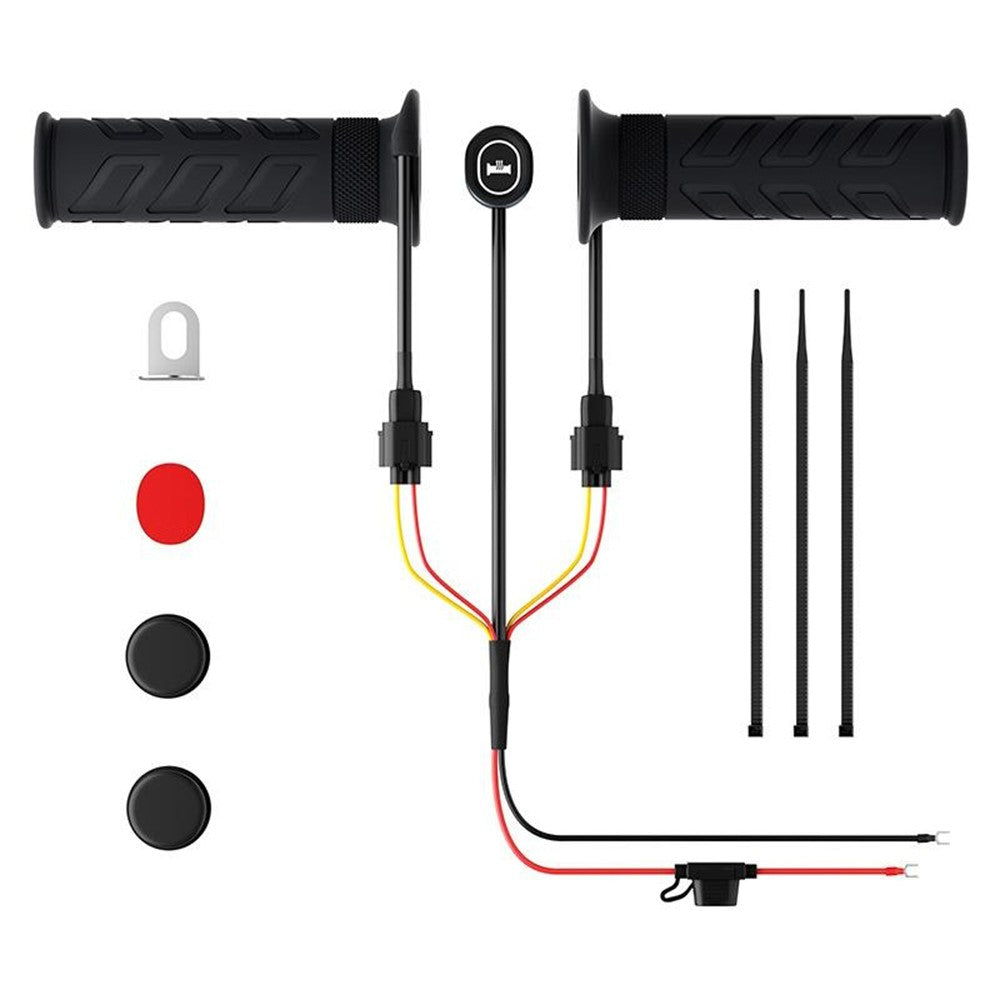

Package included

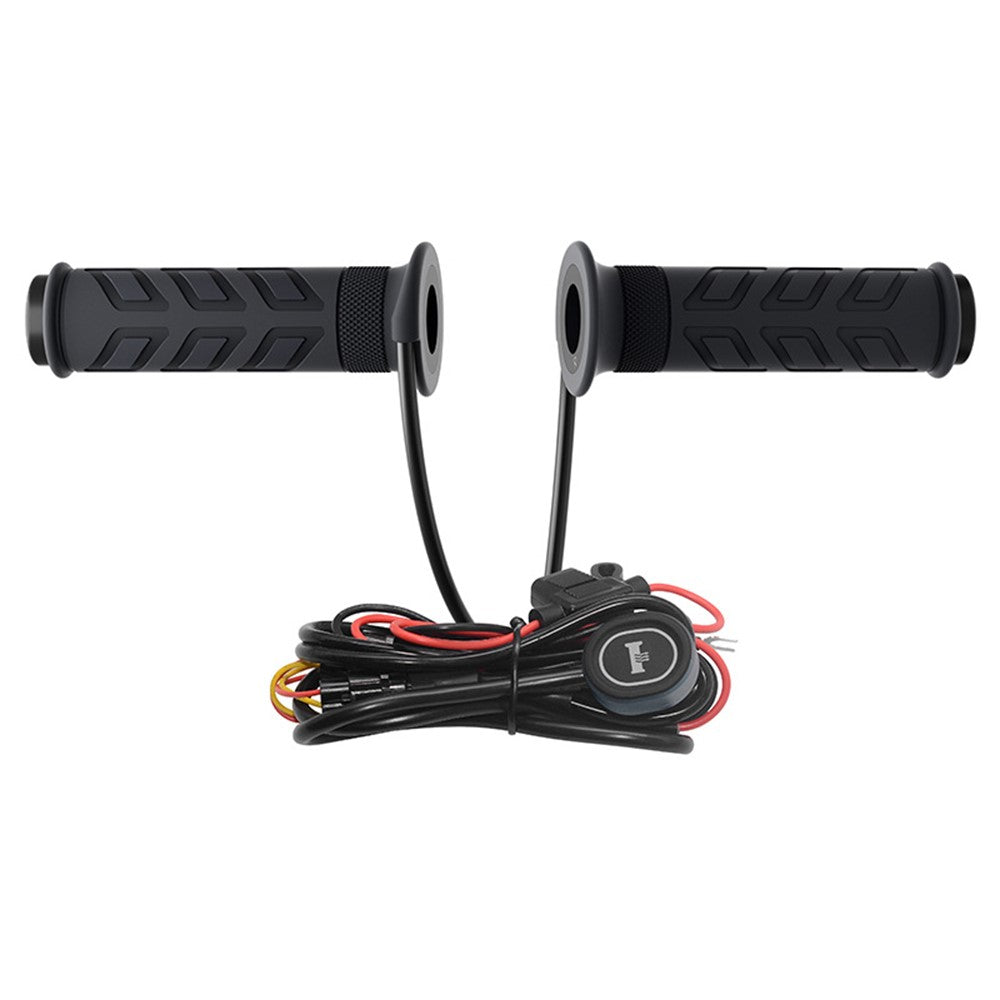

• 2 x Heated Grips
• 2 x Handlebar End Plugs
• 1 x Stainless Steel L-shape Bracket
• 3 x Cable Ties
• 1 x Adhesive
