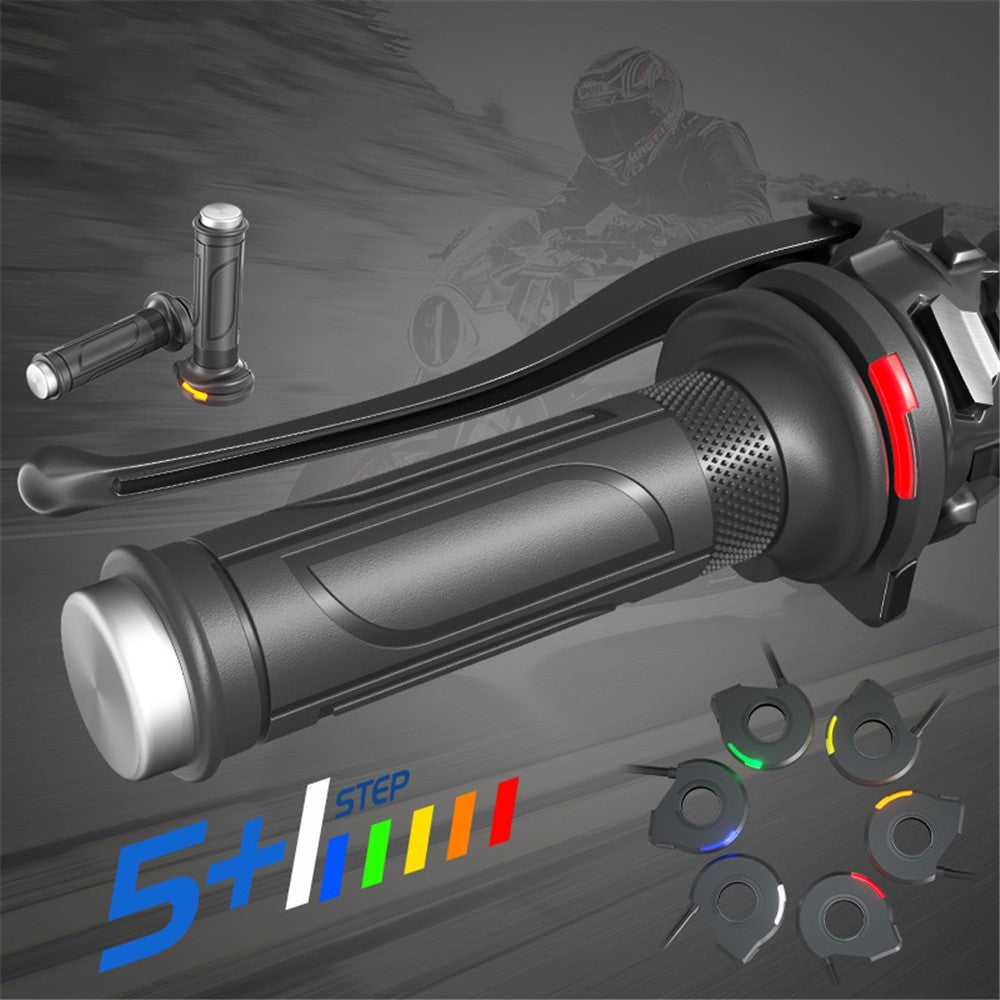

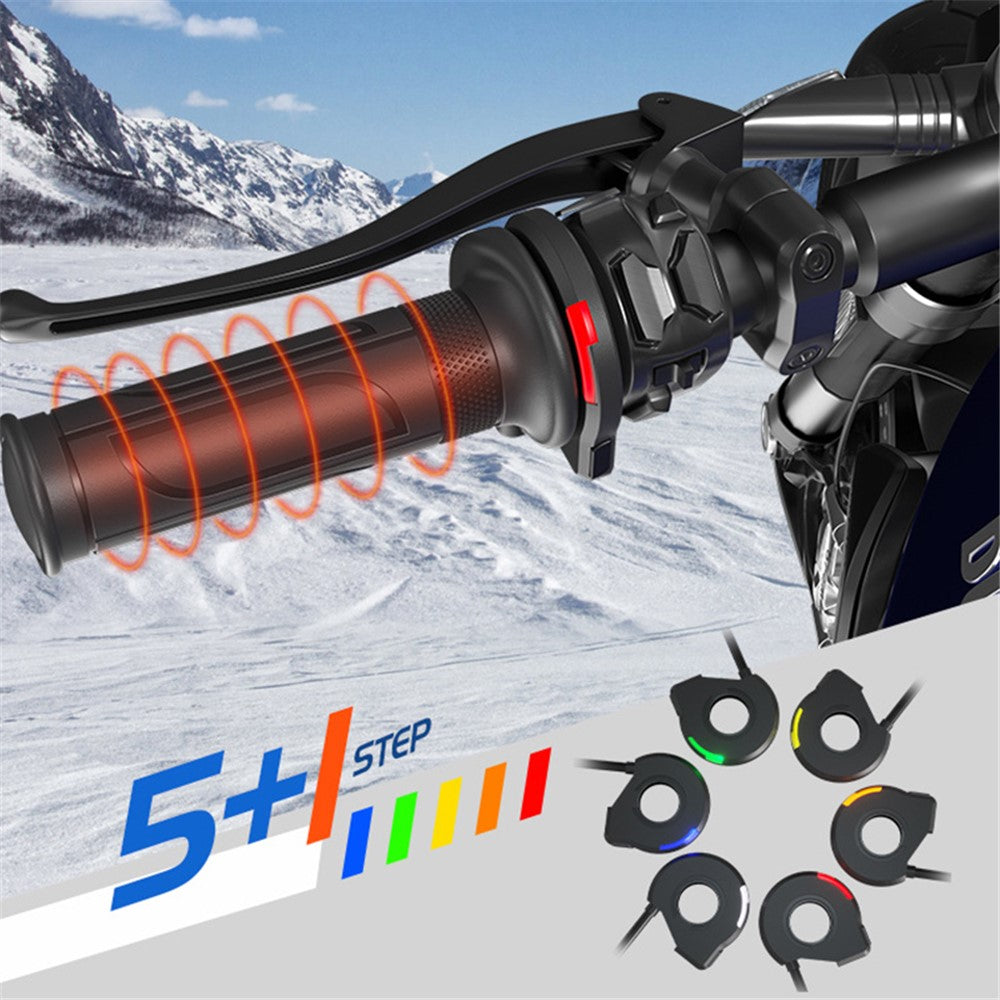

• The switch of the product is a built-in intelligent temperature control chip, 5+1 gears can adjust the temperature, intelligent temperature control is more convenient, according to personal preferences, and adjusts to the corresponding temperature
• The product has added a memory function, anytime you turn it on, you can keep the optimal temperature of the last adjustment, which is more considerate and convenient
• The product is specially designed with a neutral function when the switch is adjusted to neutral, the white light will be on for 5 seconds and then flash 5 times to turn off automatically, it will not consume battery power, and it is safer and more convenient to use

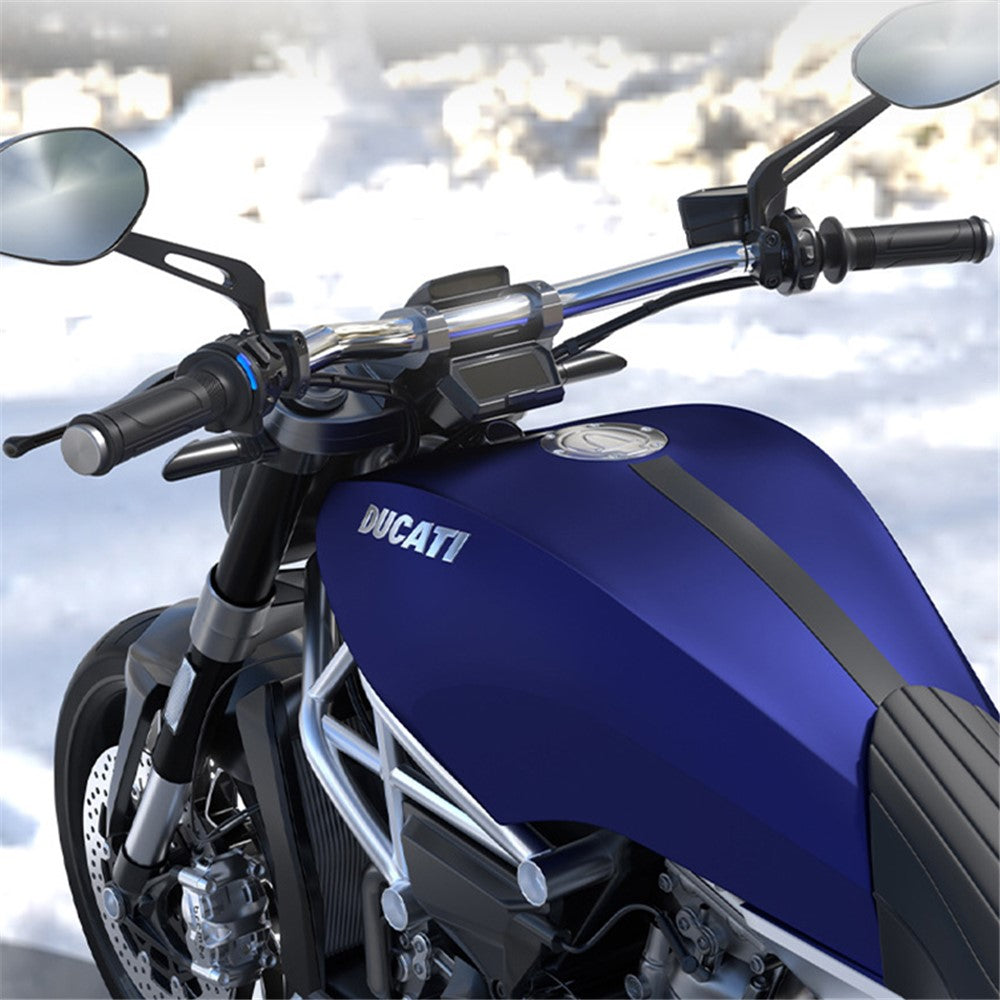

• Scope of application: Suitable for DC12V electric scooters, motorcycles, beach bikes, three-wheeled motorcycles

Specifications:

• Product Model: CSZH-1787A1
• Product weight: 355g
• Product Material: PVC
• Input voltage: DC12V
• Working voltage: DC12V-16V
• Output power: 20-40W
• Operating temperature: -15℃-50℃
• Applicable pipe diameter: 2.2mm
• Protection Voltage: When the input voltage is ≥16V, it can be turned on, but the white light flashes 3 times quickly and then shuts down

Instructions for Use:

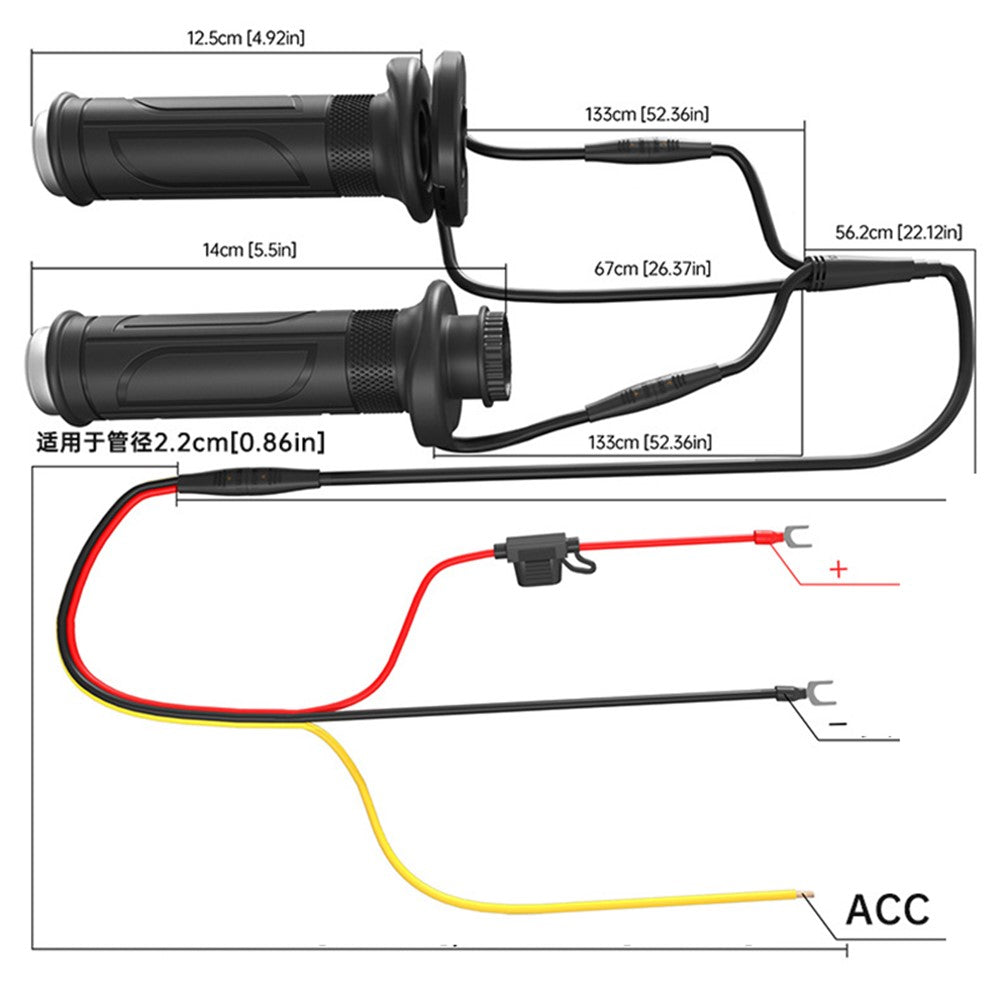

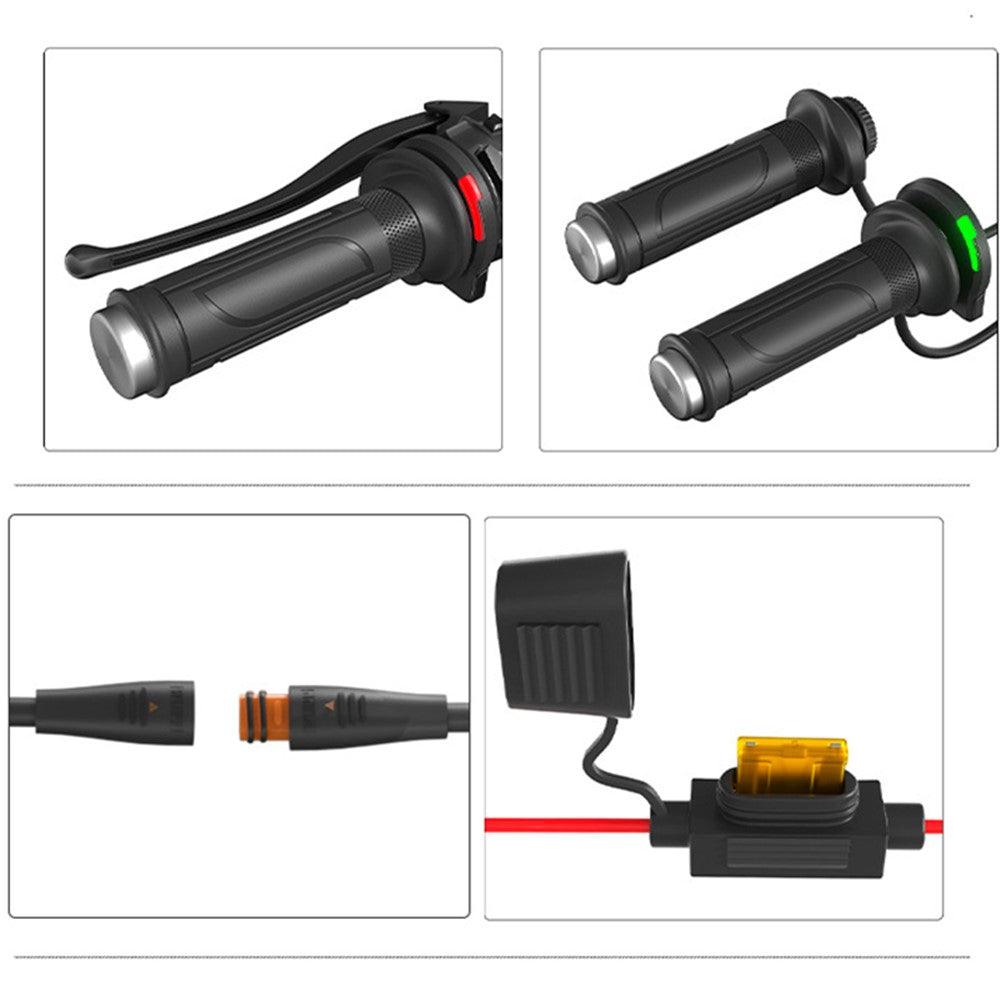

• Red line is positive, black line is negative, yellow line is ACC line, please do not connect the wrong, otherwise, it is easy to cause product damage.
• Click the on/off key: it is to switch gears and power on.
• Power on that is to boot, boot to memory gear work (that is, the gear before shutdown) the original default neutral, boot does not change gear.
• Memorize the current gear when working in any gear, it can also be memorized when power is lost, press 3 seconds to turn off the power.

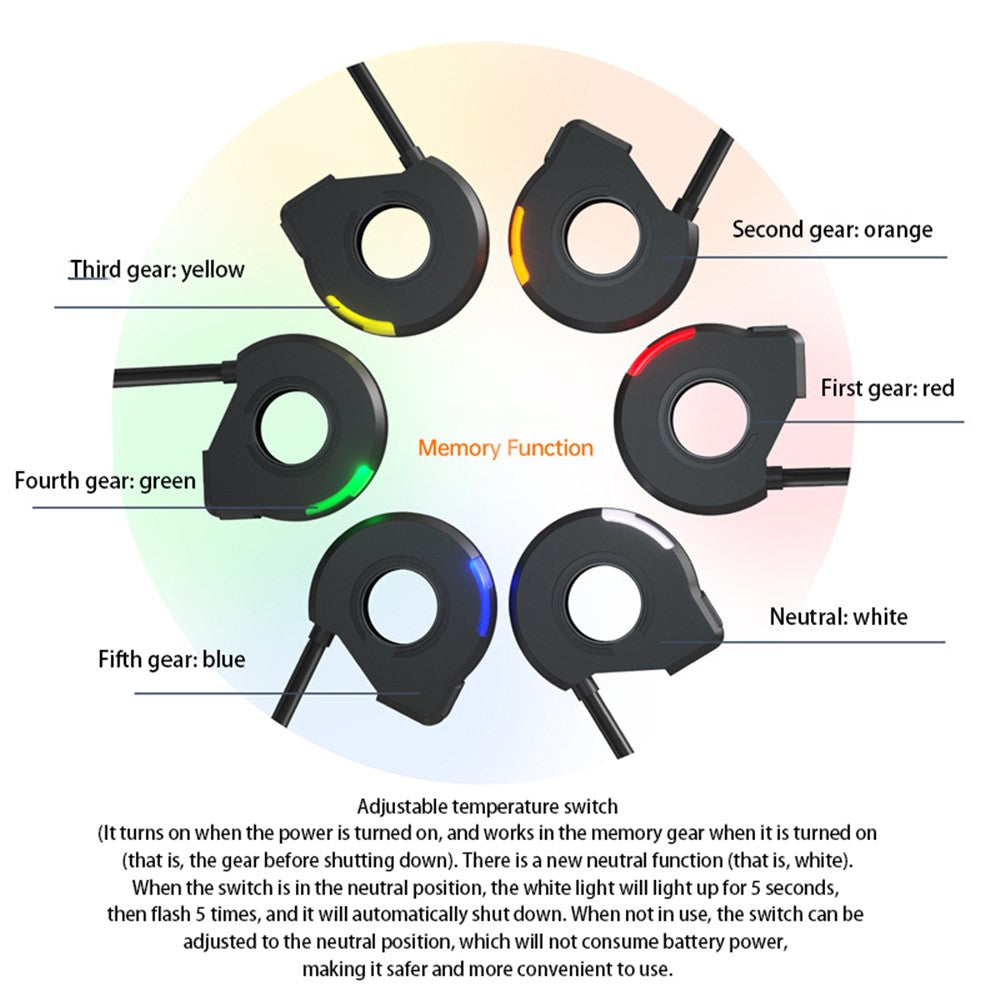

• 5LED indicates different gear colors: 100% red, 75% orange, 50% yellow, 40% green, 30% blue, neutral: white.
• Anti-surge and reverse connection protection; ACC control function.

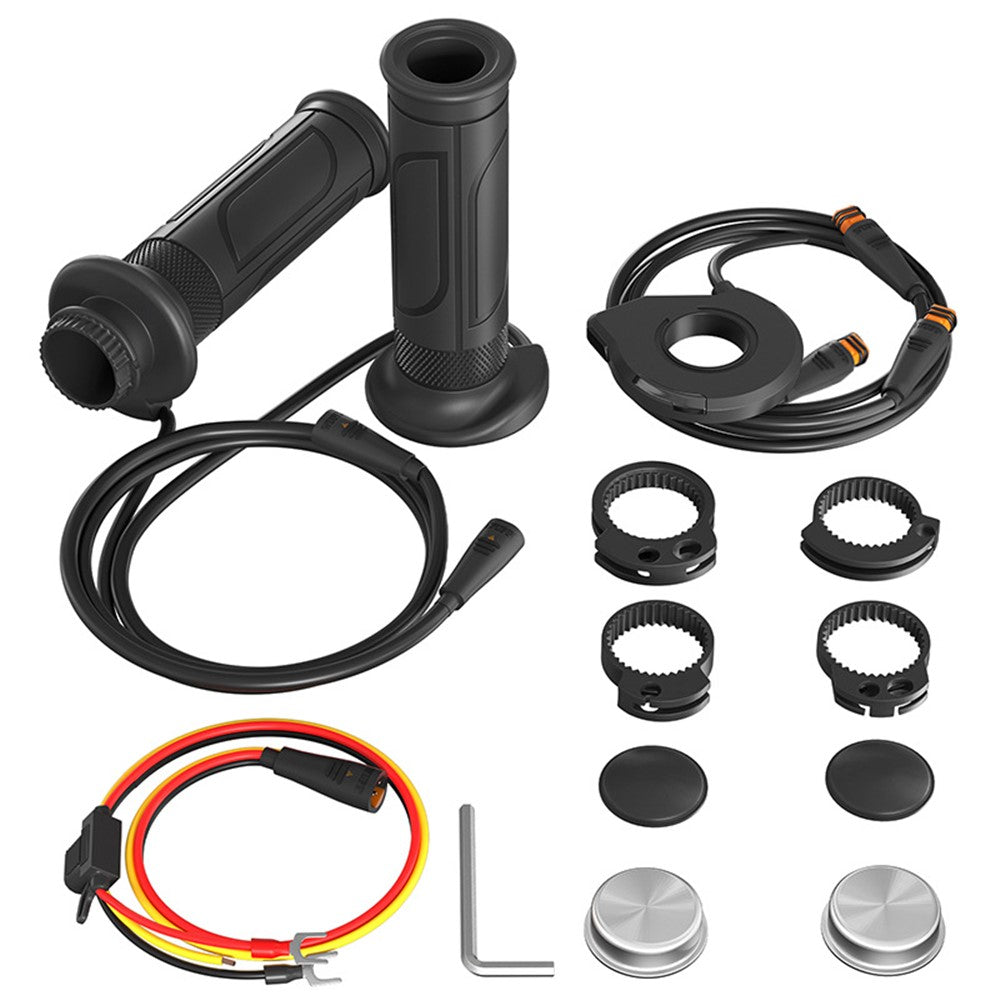

Package included

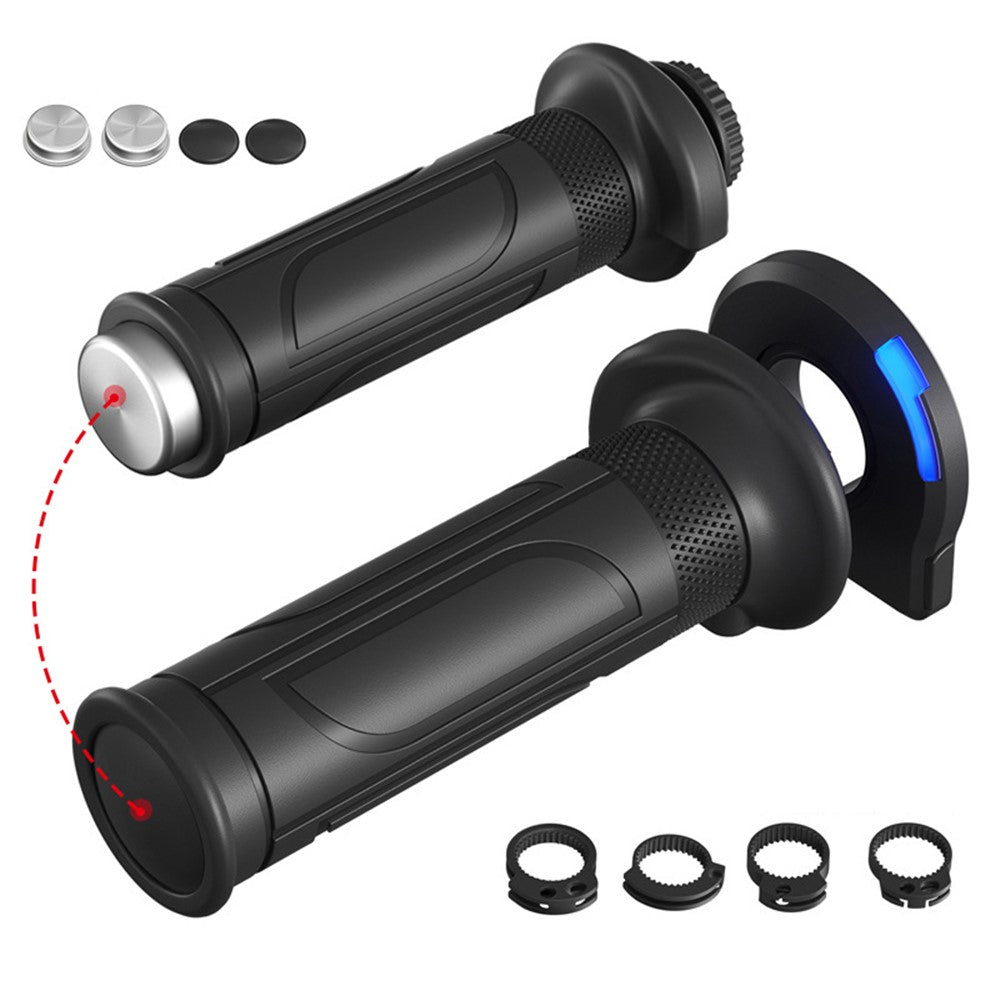

• 1Pair x Handlebar Heated Grip
• 1 x Wrench
• 4 x Throttle Core
• 4 x Handlebar Plug
